Model Selection

1POWER UNIT
Highly reliable pneumatic-hydraulic drive (intensifier). permits 50% cheaper energy cost to operate than the electric drive system. Simples structure assures easy maintenance.

2HOLDER KNOB/KNOCK OUT KNOB
Pressure adjustment can be done by pulling out the adjusting knob. After adjustment, push in the knob,and the setting is locked.

3PIERCING PLATE
The plate is precisely machined and hardened ,and pressure-resisting, wear-resisting parts are adopted for which ,hence there won't be oil-leaking after long time of service. It features simple structure and easy maintenance.

Air Driven Hydraulic Pump Unit

4
Die Clamp

5
Control Operation Panel

6
Model Selection

ADD TO INQUIRY

MODEL SP-1

MODEL	SP-1
Press Tonnage	Gear Type
Knock Out Capacity	(MAX) 11 tons
Holder Capacity	(MAX) 5 tons
Knock Out Pad Stroke	6 mm
Plate Thickness	80 mm
Plate Weight	200 kgs
Upper Die Clamp	4-CB2
Lower Die Clamp	2-CB2

MODEL SP-2

MODEL	SP-2
Press Tonnage	45~80 tons
Knock Out Capacity	(MAX) 22 tons
Holder Capacity	(MAX) 10 tons
Knock Out Pad Stroke	5 mm
Plate Thickness	100 mm
Plate Weight	330 kgs
Upper Die Clamp	6-CB4
Lower Die Clamp	2-CB4

MODEL SP-3

MODEL	SP-3
Press Tonnage	80~100 tons
Knock Out Capacity	(MAX) 32 tons
Holder Capacity	(MAX) 16 tons
Knock Out Pad Stroke	5 mm
Plate Thickness	100 mm
Plate Weight	340 kgs
Upper Die Clamp	8-CB4
Lower Die Clamp	2-CB4

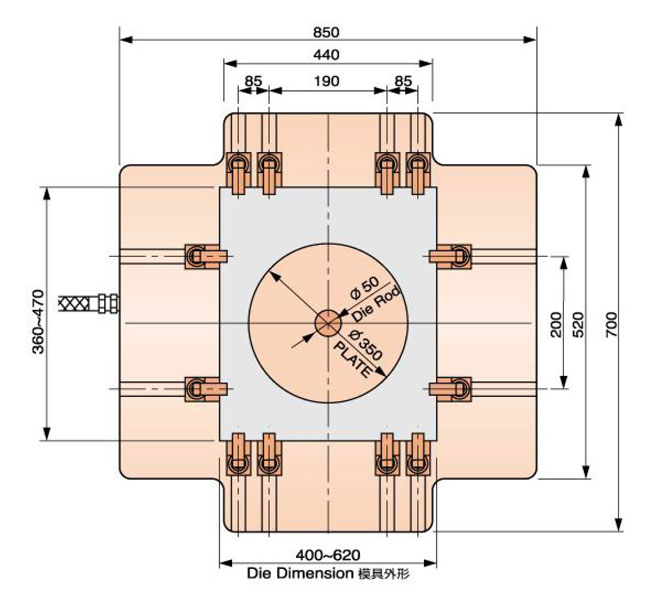

MODEL SP-5

MODEL	SP-5
Press Tonnage	110~150 tons
Knock Out Capacity	(MAX) 45 tons
Holder Capacity	(MAX) 22 tons
Knock Out Pad Stroke	6 mm
Plate Thickness	130 mm
Plate Weight	580 kgs
Upper Die Clamp	12-CB4
Lower Die Clamp	2-CB6

MODEL SP-7

MODEL	SP-7
Press Tonnage	160~200 tons
Knock Out Capacity	(MAX) 63 tons
Holder Capacity	(MAX) 31 tons
Knock Out Pad Stroke	6 mm
Plate Thickness	148 mm
Plate Weight	770 kgs
Upper Die Clamp	12-CB6
Lower Die Clamp	2-CB10

MODEL SP-9

MODEL	SP-9
Press Tonnage	250 tons
Knock Out Capacity	(MAX) 100 tons
Holder Capacity	(MAX) 50 tons
Knock Out Pad Stroke	7 mm
Plate Thickness	150 mm
Plate Weight	880 kgs
Upper Die Clamp	16-CB6
Lower Die Clamp	4-CB10
