SANDSUN | Sandsun Precision Machinery Co., Ltd.

Sandsun die clamp is designed to lock and stable the molds after the die changed.
We have developed different types of die clmaps for various types of press machine, such as: model CA, CB, CD, CE, CF and CAR.
The maximum capicity of the clamps is 1 tons up to 50tons.

MODEL CA - MODEL SELECTION

①	②
Capacity of clamp : 1~25(25tons)	EMPTY: Standard type C:Pneumatic cylinder movable type B:Fixed type V:Temperature -resisting type

*Please indicate the size of T slot (a,b,c,d) and the thickness (H) of the template for the die when purchasing.

Unit:mm

MODEL	CA-1	CA-2	CA-4	CA-6	CA-10	CA-16	CA-25
Capacity of clamp *tons	1	2	4	6	10	16	25
Total stroke(X) mm	6	8	8	8	8	8	8
Stroke of clamp(Y) mm	3	4	4	4	4	4	4
Presserved stroke(Z) mm	3	4	4	4	4	4	4
Total volume of cylinder cc	3	7	13	21	32	54	76
The tolerance of template thinkness (H) mm	±1.5	±2	±2	±2	±2	±2	±2

*Hydraulic pressure: 24.5MPa(250kg/cm²)(3,550psi)

L: Template's length for clamp

Unit:mm

MODEL
CA-1
CA-2
CA-4
CA-6
CA-10
CA-16
CA-25

ØF	E	ØG	ØJ	max. H+d	max. L	max. a	k	p
44	48	12	34	60	12	8	13.5	1/8PT
53	52	16	48	80	17	12	12	1/8PT
65	58	23	58	90	20	16	15	1/4PT
82	65	30	64	100	25	18	15
99	71	38	78	110	30	22	15
128	82	45	88	120	38	28	17
150	100	55	98	140	45	36	23

*The sizes of clamps A , B and C are made based on the size of T slot.
*If the thickness of clamp (H+d) is more than the max. value listed on the left, it will be regarded as special pattern.

MODEL CB - MODEL SELECTION

①	②
Capacity of clamp :1~25(25tons)	EMPTY: Standard type C: Pneumatic cylinder movable type B: Fixed type V: Temperature -resisting type

*Please indicate the size of T slot (a,b,c,d) and the thickness (H) of the template for the die when purchasing.

Unit:mm

MODEL	CB-1	CB-2	CB-4	CB-6	CB-10	CB-16	CB-25
Capacity of clamp *tons	1	2	4	6	10	16	25
Total stroke(X) mm	6	8	8	8	8	8	8
Stroke of clamp (Y) mm	2.5	3	3	3	3	3	3
Presserved of clinder(Z) mm	3.5	5	5	5	5	5	5
Total volume of cylinder cc	3	7.5	13	21	38	55	98
The tolerance of the template thinkness(H) mm	±1.5	±2	±2	±2	±2	±2	±2

*Hydraulic pressure: 24.5MPa(250kg/cm²)(3,550psi)

Unit:mm

MODEL
CB-1
CB-2
CB-4
CB-6
CB-10
CB-16
CB-25

L	K	J	min.(H)	min. E	F	G	min. a	min. C	P
74.5	60	14.5	25	55	44	20	10	6.5	1/8PT
110	90	20	25	73	68	32	14	10	1/8PT
134	110	24	25	77	79	40	18	12	1/4PT
159	130	29	30	92	96	46	22	14
189	159	30	40	114	117	54	24	16
230	200	30	40	126	129	58	28	20
265	235	30	45	148	156	70	36	23

*The sizes of clamps A , B , C and D are made based on the size of T slot.

MODEL CD ( AUTO SLIDE CLAMP ) - MODEL SELECTION

①	②	③	④	⑤	⑥	⑦
Capacity of clamp: 4.6.10 (tons)	S:Stroke 400~1300	Terminal box R:right side L:left side	H: Die template thickness	P: Distance between seat & slide	V: Proximity sensor voltage 1. AC90~240V(2-Wire) 3: DC10~30V(NPN, 3-Wire) 4: DC10~30V(PNP,3-Wire)	Solenoid valve voltage: 0: No Solenoid 1: AC110V 2: AC220V 3. DC24V

Model	CD-4	CD-6	CD-10
Capacity of clamp	4	6	10
Hydraulic pressure MPa (kg/cm²) (psi)	24.5	250	3550
Pneumatic pressure MPa (kg/cm²) (psi)	0.34~0.49	3.5~5.0	50~71
Moving speed mm/s	300(max)
Total stroke/mm	8	8	8
ØX/mm	65	82	99
Y/mm	73	80	86
Z/mm	23	14.5	6
ØA/mm	28~32
B min/mm	32	42	47

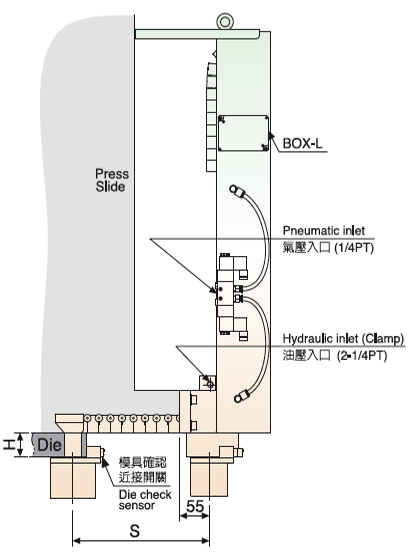

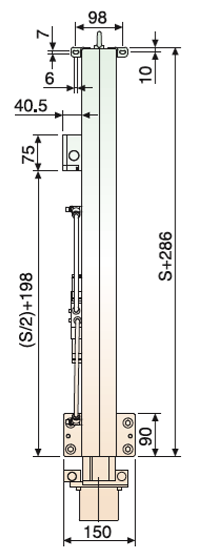

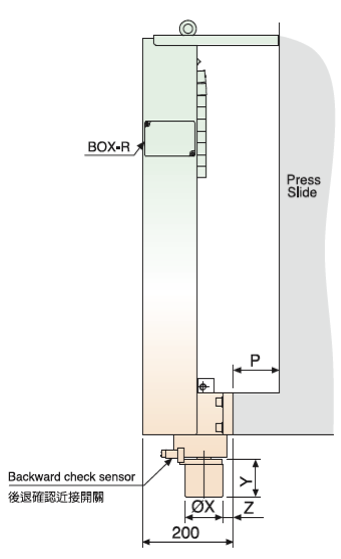

OUTLINE DIMENSIONS

MODEL CE CF ( ROD SWING CLAMP ) - MODEL SELECTION

①	②	③	④	⑤
E: For upper die (45°) F: For lower die (90°)	Capacity of clamp: 4.6.10 (tons)	H: Die template thickness (H)/mm(tolerance: H±0.5)	V: Proximity voltage 1. AC90~240V(2-Wire, 2meter) 3: DC10~30V(NPN, 3-Wire, 2meter) 4: DC10~30V(PNP,3-Wire, 2meter)	P: Table thickness

MODEL	C▢-04	C▢-06	C▢-10
Capacity of clamp /tons	4	6	10
Hydraulic pressure MPa (kg/cm²) (psi)	24.5	250	3550
Pneumatic pressure MPa (kg/cm²) (psi)	0.34~0.49	3.5~5.0	50~71
Total stroke of cylinder(X)/mm	8	10	12
Stroke of clamp(Y)/mm	5	7	9
Preserved stroke(Z)/mm	3	3	3

MODEL
C▢-04
C▢-06
C▢-10

ØA	B	ØC	D	ØE	F(max)	G	ØI	J	K	L	M	N	O	P(min)	Q	ØR	ØS	ØT
102	84	50	25	22	25	30	28	83	66	39	83	10.5	25	85	38	120	7	12
125	94	60	25	28	30	35	34	93	70	49	93	10.5	30	85	43	145	7	12
145	111	75	30	34	37.5	43	40	130	80	59	120	10.5	35	100	50	165	9	16

OUTLINE DIMENSIONS

* Make sure that screws, washers, cutting chips or blank pieces do not enter the clamp. Otherwise, clamp does not operate smoothly and may be damaged.

MODEL CAR ( ROTARY DIE CLAMP ) - MODEL SELECTION

①	②	③	④
Capacity of clamp: 4~16 (tons)	H: Die template thickness	P: Bolster thinkness	Inlet: L or R

MODEL
CAR-04
CAR-06
CAR-10
CAR-16

A±1	B (Min)	C (Min)	D	E	F	G	ØJ	ØM	ØN	Q	O	R	T	U	V	W	ØX	ØY	P (Min)
35	70	20	112	70	M8x16D	M10x20D	59	25	148	84	35	17	240	16	68	104	12	20	80
40	75	25	112	70	M8x16D	M10x20D	64	32	148	84	35	22	250	16	68	109	12	20	80
50	95	30	116	70	M8x16D	M10x20D	84	40	158	85	70	27	260	16	69	110	12	20	90
60	110	35	118	72	M10x20D	M12x24D	99	50	168	95	80	32	280	16	79	119	14	23	100

*Hydraulic pressure: 18.2MPa(185kg/cm²)(2,625psi)
*Pneumatic pressure: 0.34~0.49MPa(3.5~5.0kg/cm²)(50~71psi)
*CAR-25 is customized product

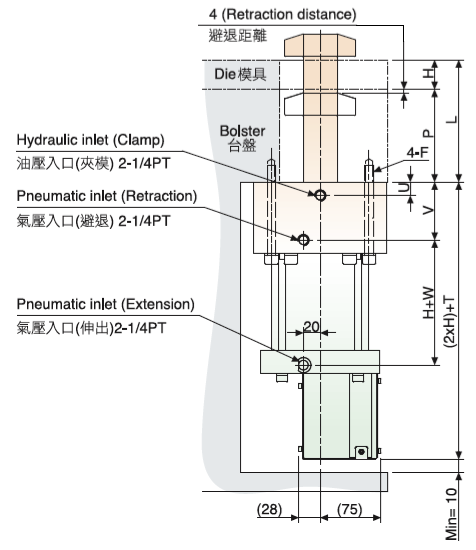

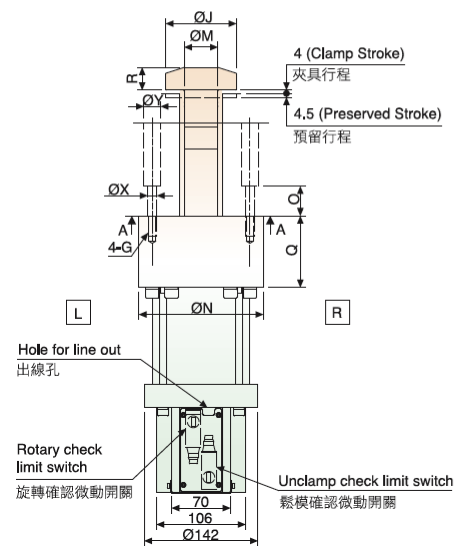

OUTLINE DIMENTIONS
